KM500B – KM2000B kiosk card printers

High-capacity card personalization modules for self-service Kiosks
Printing:Single-sided, Double-sided

-Encoding: Magnetic stripes, Smart contact, Smart contactless
-Card lifespan: 1-3 years
-Number of cards per year: More than 30,000
-Card security level: Standard

Immediate service
Printing cards instantly from independent terminals allows companies, banks and even universities to improve the quality of service offered to their customers and members. The cards are customized and issued to their holders 24/7, from terminals that can be installed in various environments (offices, shopping centers, airports, on campus, etc.).

Your users can print their cards instantly, without having to stand in a long queue at a booth or waiting for postal deliveries.

From self-service terminals, users can select the design of their card on the terminal, or even use a personal photograph.

KM500B et KM2000B, Independent and flexible card printers
Thanks to the high feeder capacity of the KM500B and KM2000B printers (500 and 2,000 cards respectively), the frequency of card and ribbon loading operations is reduced.
Evolis High Trust® ribbons can generate more than 3000 single-sided monochrome cards, and 500 in color.

The KM2000B module integrate four 500-card feeders and can manage up to 4 different designs of pre-printed cards, according to your needs.

Printers configured on demand and easy to use
KM500B and KM2000B solutions are fully modular:

single or dual sided card printing
equipped with an encoder for magnetic stripe
can be upgraded with encoders for contact and contactless smart cards
You can easily configure card management:

cards returned using an exit slot
different configuration possibilities like frontal or rear feeding and card exit
In order to limit and facilitate everyday maintenance operations, KM500B and KM2000B printers offer remote notifications on the status of the printer and consumables such as the card or ribbon level alert.

Thanks to the Evolis Premium SDK, you can integrate KM500B and KM2000B into your own application and monitor them over a local network or the cloud.

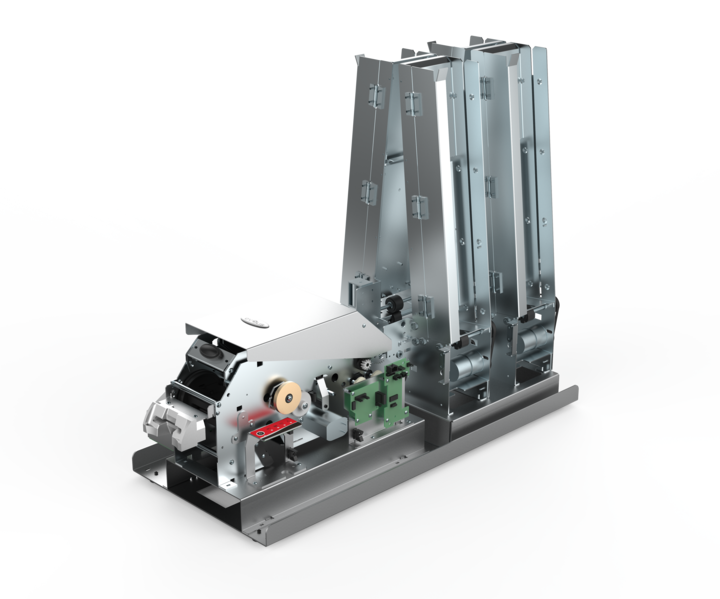

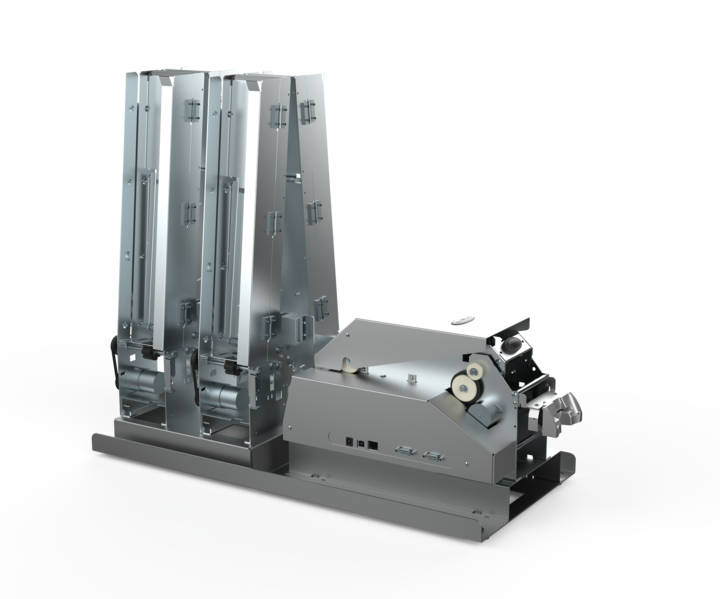

Evolis KM2000B kiosk card printer

High quality printing in few seconds
From complete printing of cards in color to the monochrome customization of pre-printed cards, Evolis solutions produce a high-resolution graphic finish in just a couple of seconds.

Evolis, Recognized Expertise
Evolis is the world leader in decentralized printing of personalized cards. With a presence in every continent, Evolis has been involved in implementing various projects for card printing using self-service terminals. Our project expertise lies in the following areas in particular:

Support at all times and during all phases of your project from a dedicated project manager and team
Precise needs analysis in order to take all your specific requirements into account
The capacity to develop customized solutions in record time using an on-site, flexible, and high-performance industrial tool
Skill transfer from our teams to yours and technical support available from our various centers of expertise.
Evolis has demonstrated its skills in a range of different projects: ID cards, bank cards, loyalty cards, gift cards, event badges, and many more.

Our customers trust us
Numerous technology partners and terminal manufacturers (GRG, Innova, K2Corp, ATAM) have chosen Evolis modules to produce cards and badges for their customers and clients, including:

Ikea: Loyalty Cards – Spain, Portugal, Turkey, France
Chuck E. Cheese’s: Souvenir Cards – United-States of America
Nomad Hotels: Access Control Badges – France
KuveytTürk: Payment Cards – Turkey
Université Paris1 Panthéon Sorbonne: Student Cards – France

General features

Dual-sided printing module
Edge-to-edge printing
Color dye sublimation, monochrome thermal transfer
Magnetic stripe encoder ISO 7811 HiCo/LoCo
Smart contact station
Standard 300 x 300 dpi resolution
16 MB memory (RAM)

Printing performances
Single side:
Color (YMCKO): 30 s per card
Monochrome: 9 s per card
Dual side:
Color (YMCKO-K): 38.5 s per card

Interfaces
USB (1.0, 1.1, 2.0, 3.0)
Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)
Option upon request: serial port

Loading and returning cards
KM500B: single feeder unit: 500 cards
KM2000B: 4 x 500-card feeder
Manual insertion and return with bezel
Reject slot for defective cards
Ability to retract unretrieved cards

Card specifications
Card thickness: 0.76 mm (30 mil)
Card types: PVC cards, composite PVC cards, PET cards, ABS cards1, special varnished cards1
Card format: ISO CR80 – ISO 7810 (53.98 mm x 85.60 mm)

Additional encoding modules
Available modules:
Contact smart card encoder – PC/SC, EMV 2000-1
Contactless smart card encoder – ISO 14443A, B, ISO15693, MIFARE, DESFire, HID iCLASS
Other specific encoders upon request
Internal USB or IP ports
Options can be combined

Safety
Data encryption for magnetic encoding

Display
Printer LEDs
Printer graphical notifications: cleaning alerts, empty/low level ribbon and cards alert…

Evolis High Trust® Ribbons
To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.

Ribbon capacity:
YMCKO: 500 prints/roll
YMCKO-K: 500 prints/roll
½ YMCKO: 400 prints/roll
KO: 500 prints/roll
Black monochrome ribbon: 3000 prints/roll1
Other monochrome ribbons: 1000 prints/roll1
BlackFlex (for ABS & special varnished cards): 1000 prints/roll
Ribbon saver for monochrome printing

Software
Compatible with Windows® (32/64 bits): XP SP3, Vista, W7, W8, W10
Mac OS X (from 10.6 onwards)
Linux upon request
Evolis Premium Suite®:
Printer driver
Evolis Print Center for printer administration and settings
Evolis Printer Manager for graphical notification2
24/7 online support
Evolis Premium SDK for remote supervision of the printer, while facilitating and speeding up integration into IT systems

Certifications and Statement of compliance
CE, FCC, ICES, VCCI, CCC
RoHS

Operating environment
Standard operating temperature and humidity rate:
15° / 30° C (59° / 86° F)
20% to 65% non-condensing
Min / Max operating temperature and humidity rate3:
0° / 40° C (32° / 104° F)
20% to 65% non-condensing
Min / Max storage temperature: -5° / +70° C (23° / 158° F)
Storage humidity rate: 20% to 70% non-condensing
Operating ventilation: free air

Size and weight
Size (H x W x D):
KM500B: 492 x 250 x 529 mm (19.37’’ x 9.84’’ x 20.83’’) with feet: H: 500 (19.68’’)
KM2000B: 571 x 300 x 710 mm (22.48’’ x 11.81’’ x 27.95’’) with feet: H: 579 mm (22.79’’)
Weight:
KM500B: 11.5 kg (24.25 lbs)
KM2000B: 26.5 kg (57.32 lbs)

Warranty4
2-year warranty (printer and print head)
Warranty extension available as an option
